Orifice flanges and spectacle blinds
Orifice flanges for flow metering runs and spectacle blinds for positive isolation, made to ASME B16.36 and B16.48.
About orifice flanges and spectacle blinds

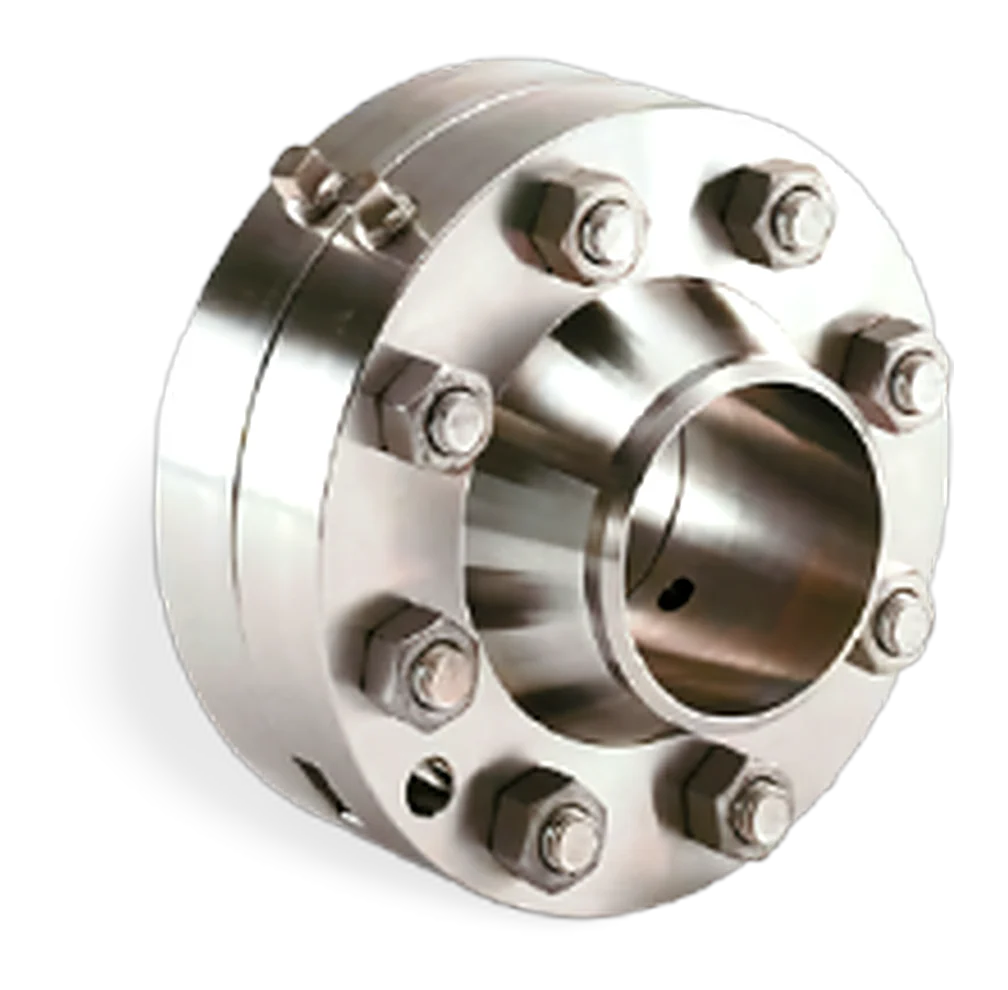

Orifice flanges (B16.36) are supplied in pairs with two pressure tappings each, jack screws and an orifice plate if required.
Spectacle blinds (B16.48) are figure-8 plates turned between flanges to isolate or open a line. Spades and spacers are supplied separately for larger sizes.
Where it is used
- Flow metering runs
- Line isolation for maintenance
- Process start-up and shutdown
- Hydrotest isolation
Need orifice flanges and spectacle blinds? Get a quotation from the manufacturer.
Send size, class, grade and quantity. We usually reply within one working day.
Dimensions by size and class
Pick a size and class. The cross-section, thickness, hub and bolting update on the drawing.
Flange dimension finder
Every ASME B16.5 dimension for weld neck, slip-on, socket weld, threaded, lap joint and blind flanges, Class 150 to 2500. The section redraws to scale as you change type, size and class.
Dimensions per ASME B16.5. The raised face is not included in thickness or hub length. Matching stud bolts come from Teshi Fasteners as a set.
Grades we manufacture
- A105 / A105N
- A350 LF2
- A694 F42–F70
- F11, F22, F91
- F304/304L
- F316/316L
- F321, F347, F310
- F904L
- F44 (254 SMO)
- F51 / F60 duplex
- F53 / F55 super duplex
- Titanium B381 F-1 to F-12
- Inconel 625, Incoloy 825
- Hastelloy C276
- Monel 400
- Alloy 20
- Cu-Ni 90/10, 70/30
Facings, marking, testing and packing
Facings
- Raised face (RF), serrated 125–250 AARH
- Flat face (FF)
- Ring-type joint (RTJ)
- Tongue and groove, male and female
Marking
Hard-stamped or stencilled with Teshi mark, size, class, grade, heat number, bore or schedule and standard, so every piece traces to its certificate.
Testing
- Dimensional and visual inspection
- PMI on alloy grades
- Hardness, impact (LF2), IGC (stainless) on request
- UT of forgings when your QAP calls for it
Packing
Faces protected, rust-preventive coating on carbon steel, packed in wooden cases or on pallets. Seaworthy packing for export orders.
Questions buyers ask
Are orifice flanges supplied in pairs?
Yes, normally as matched pairs with tappings, jack screws and nuts. Orifice plates and gaskets can be added.
